Why put a display on a positioning badge?

Most positioning badges are black boxes — LEDs only, no screen. The wearer sees nothing. The caregiver or supervisor sees everything on the cloud dashboard. That works for some deployments. It fails in others.

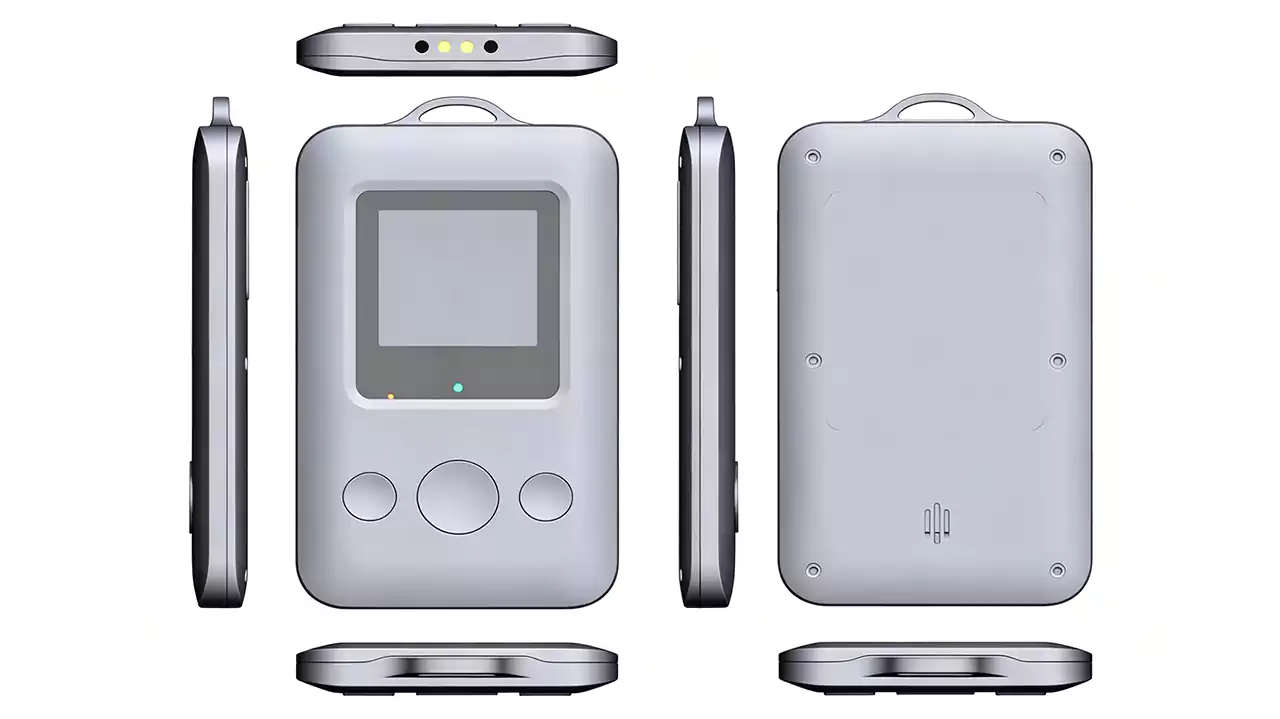

For an elderly person with memory loss: A badge that vibrates and flashes an LED when they approach a building exit is confusing. A badge that displays "Please return to the lobby. Exit is not permitted at this time." is understandable. The G818 series puts a 1.54-inch color IPS display on the badge itself, giving the wearer direct feedback — time, battery status, SOS confirmation, and messages pushed from the caregiver's app or the cloud platform.

For a sanitation worker on a route: The display can show the current route segment, the next checkpoint, or a reminder message from dispatch. This is more practical than pulling out a phone while wearing gloves on a cold morning.

For a student on campus: A message from a parent or teacher — "Come to the office after class" — appears on the badge. No phone required. No smartwatch to charge separately.

Three network options, one form factor

G818N (NB-IoT)

The most cost-effective variant. NB-IoT provides wide-area coverage on existing cellular infrastructure at the lowest per-device data cost. Suitable for large-scale deployments — hundreds or thousands of badges across a city-wide elderly care program or a municipal sanitation fleet. The trade-off: no voice, and data rates are limited to small periodic payloads.

G818G (4G Cat.1)

The full-featured variant. Adds a built-in speaker capable of voice broadcast — messages pushed from the platform are read aloud to the wearer. The 4G connection supports larger data payloads, faster positioning updates, and OTA firmware upgrades. For deployments where voice communication is essential — elderly care with spoken reminders, student safety with parent messages — the G818G is the right choice.

G818L (LoRaWAN)

For deployments on a private LoRaWAN network. No SIM, no recurring carrier fees. Data stays on the customer's infrastructure. Best for a care home campus with its own gateway, or a school district that wants complete data sovereignty. The trade-off: no voice, and coverage is limited to the gateway range.

The display and button interface

The 1.54-inch 240×240 IPS TFT display is large enough to show:

• Time, date, and battery level

• SOS confirmation ("Alert sent. Help on the way.")

• Incoming messages from the platform

• Geofence status ("Entering restricted area")

• Network signal strength

Three physical buttons provide direct interaction:

• Center button (large): SOS emergency alert. Press and hold to trigger. The badge vibrates, displays confirmation, and sends an alert with GPS coordinates to the platform. On the G818G model, the speaker announces "SOS alert sent" for audio confirmation.

• Two side buttons: Configurable functions — power on/off, message acknowledgement, status check. Default assignments can be modified per deployment.

The large buttons are designed for elderly users with reduced dexterity and for workers wearing gloves. This is not a touchscreen device. It is a physical-button device. That distinction matters when the wearer is in distress and cannot navigate a menu system.

Positioning and reporting

The G818 series uses the standard four-source positioning architecture:

• GPS + BDS (BeiDou) — outdoor, 5-20m accuracy

• WiFi fingerprinting — transitional zones, 10-50m depending on AP density

• BLE 5.1 beacon scanning — indoor, 1-3m with 6-8m beacon density; sub-meter with AoA gateway

• Cellular LBS — fallback

The onboard accelerometer detects movement and stationary states:

• Stationary for 20+ minutes → sleep mode, no positioning, no reporting

• Movement detected → immediate position fix, then periodic reporting at configured interval

• Step counting data included in periodic reports

Offline buffering: 1MB of Flash stores position data when cellular/LoRa signal drops. When the connection restores, buffered data uploads automatically. For a sanitation worker in an underground parking structure or an elderly person in a concrete stairwell, no data is lost.

Voice broadcast (G818G only)

The 4G Cat.1 model includes a built-in speaker capable of playing voice messages pushed from the cloud platform. Applications include:

• Geofence alerts: "You have left the designated area. Please return to the community center."

• Medication reminders: "It is time to take your afternoon medication."

• Route instructions: "Next checkpoint: Block 7, North Entrance."

• Emergency broadcast: "Severe weather warning. Please seek shelter immediately."

Voice messages can be pre-recorded or generated via TTS (text-to-speech) on the platform side. Content is customizable per deployment.

The lanyard form factor

The G818 series uses a standard lanyard with a waterproof sleeve. At 100 × 58 × 10mm and 50 grams, it is worn visibly on the chest, not concealed. This is intentional — for school campuses, the badge serves as visible student identification. For elderly care, it serves as a medical alert badge that first responders can immediately recognize.

The waterproof sleeve protects the badge against rain and splashes (IPX5 rated). The sleeve is user-replaceable if damaged.

Comparison with related products

Choose G818 if: The wearer needs to receive and read messages on the badge itself. This is the only badge in the product line with a display. It is designed for communication, not just tracking.

Choose G808G if: You need explosion-proof certification, UWB precision positioning, or a 2000mAh battery.

Choose G628G if: You need the lightest possible badge (19g) and the wearer does not need a display. The G628G is an attendance and patrol tool; the G818 is a communication and safety tool.

Full technical specifications

What the G818 series is NOT
