The cost of using non‑certified beacons in hazardous areas

We've seen it too many times: a chemical plant buys standard BLE beacons to track assets, ignoring the risk of a spark. One short circuit, one static discharge – and the entire facility could be at risk. The direct cost of a fire is bad enough. The indirect cost – lost production, regulatory fines, reputational damage – is catastrophic.

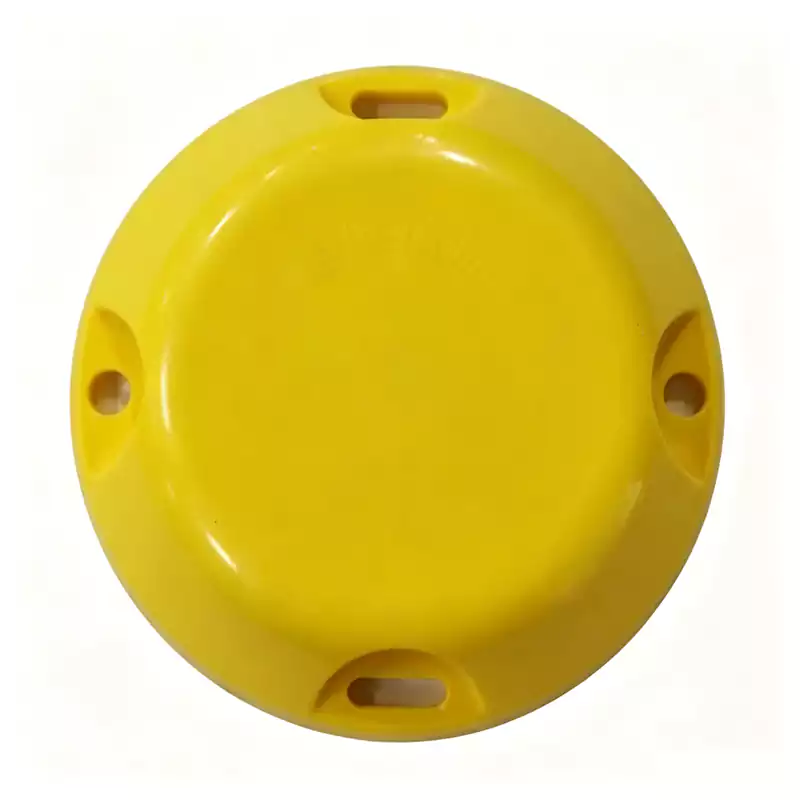

The OV03 is not a repurposed consumer beacon. It carries Ex ia IIC T6 Ga certification – the highest level of intrinsic safety, allowing deployment in Zone 0 hazardous areas (continuous explosive gas atmosphere). Every circuit is designed to limit stored energy so that even under fault conditions, no spark can ignite the ambient gas.

Understanding the Ex ia IIC T6 Ga rating

• Ex – Complies with explosion‑proof standards (GB3836 series / IEC 60079).

• ia – Intrinsically safe, the highest level of protection. Even under fault conditions, the circuit cannot ignite an explosive atmosphere. Suitable for Zone 0 (where explosive gas is continuously present).

• IIC – Gas group for the most dangerous gases, including hydrogen, acetylene, and carbon disulfide. IIC is the highest protection level for gas environments.

• T6 – Temperature class. Maximum surface temperature ≤85°C. T6 is the highest temperature class, suitable for gases with very low ignition temperatures.

• Ga – Equipment protection level for Zone 0 (continuous hazard). Ga is the highest protection level for gas environments.

Why the ER14505 battery matters

Standard beacons use CR series coin cells. The OV03 uses a lithium‑thionyl chloride ER14505 cell – 2600mAh capacity, wide temperature tolerance (-60°C to +85°C), and ultra‑low self‑discharge (<1% per year at 25°C). At a 500ms broadcast interval with 0dBm TX power, you get 5+ years of continuous operation. For low‑frequency applications (e.g., 2‑5 second intervals), expect 7–10 years on a single battery.

Key features

• Ex ia IIC T6 Ga certified – Certified for Zone 0, Zone 1, and Zone 2 hazardous areas. Official explosion‑proof certificate included.

• 5+ year battery life – 2600mAh lithium‑thionyl chloride battery (ER14505). Replaceable but designed for multi‑year deployments.

• IP67 waterproof – Dust‑tight and protected against temporary immersion (1m, 30 minutes). Suitable for outdoor installations exposed to rain and washdowns.

• TI CC2640 chipset – Industry‑proven BLE SoC with excellent power efficiency and stable RF performance.

• 100m line‑of‑sight range – With default 0dBm TX power. Adjustable from -21dBm to +5dBm to balance battery life against coverage.

• Flexible configuration – Customise UUID, Major, Minor, device name, TX power, and broadcast interval via configuration tool.

• Secure by design – Dynamic password authentication prevents unauthorised cloning or tampering – critical for safety‑critical environments.

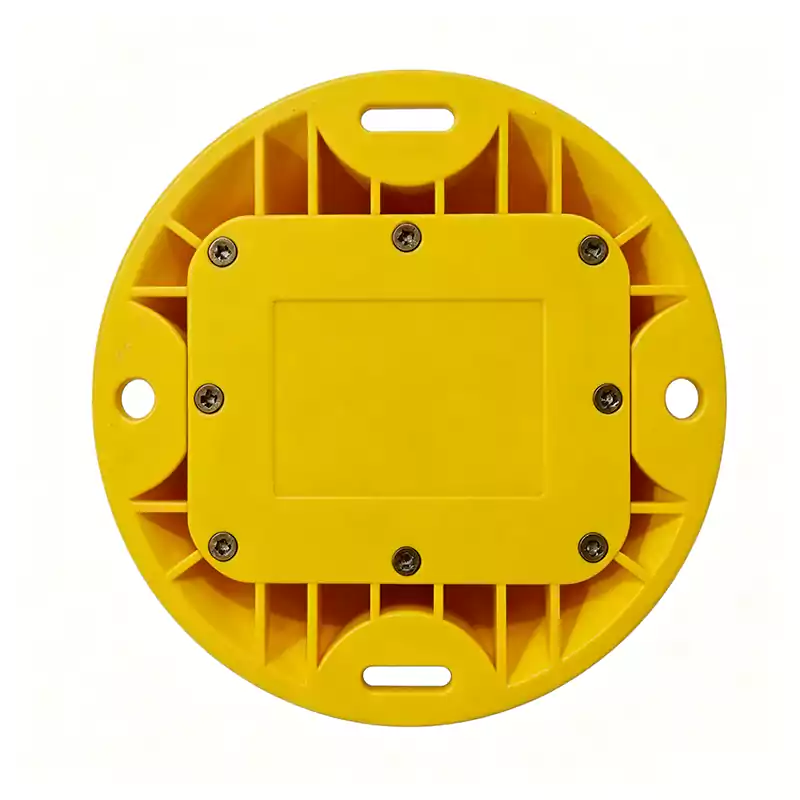

• Screw mounting – Four corner mounting holes for permanent fixing to walls, posts, or equipment.

• Wide operating temperature – -20°C to +70°C for outdoor and industrial indoor use. Storage down to -40°C.

Technical specifications – OV03

What the OV03 is NOT (honest limitations)

Applications

• Oil refineries and petrochemical plants – Track personnel and assets in hazardous processing areas (Zone 0, 1, 2).

• Chemical manufacturing – Monitor equipment and ensure safety compliance in explosive gas environments.

• Coal mines and gas processing – Intrinsically safe tracking for underground and above‑ground hazardous zones.

• Paint spray booths – Personnel and asset tracking in potentially explosive dust/vapour atmospheres.

• Pharmaceutical manufacturing – Tracking in solvent‑handling areas where flammable vapours may be present.

• Logistics at hazardous material storage – Real‑time location of flammable material containers.

Real deployment: 500‑unit refinery rollout

A major petrochemical refinery in eastern China deployed 500 OV03 beacons across its 2km² processing area. The beacons were screw‑mounted to pipe racks, distillation columns, and safety equipment. Paired with 15 BLE AoA gateways (weatherproof, installed at 10‑12m height), the system provided continuous location of 1,200 workers (wearing BLE badges) and 600 portable gas detectors. The OV03 beacons served as fixed references for triangulation – because their positions are known, the system could correct for multipath and environmental interference. The refinery reduced emergency response time by 40% and eliminated manual safety rounds. After 48 months of operation, fewer than 8% of beacons had required battery replacement.

Another client, an international chemical company, used OV03 beacons in a paint mixing facility where airborne solvent vapours are always present. The Ex ia IIC T6 Ga rating allowed installation in the mixing room itself – a Zone 1 area – where standard beacons could not legally be used. The facility passed a surprise safety inspection with zero findings.
