OV05 iBeacon Ultra‑thin Asset Tag
3‑year battery · 100m range · CR3032 · TI CC2640
The hidden cost of replacing hundreds of beacon batteries every year
We've seen it too often: a warehouse deploys cheap coin‑cell beacons to track pallets, and 18 months later every single one is dead. The cost isn't the batteries – it's the labour to locate, replace, and reconfigure each tag. The OV05 was designed to delay that day as long as possible, without making the tag thick or heavy.
It uses a CR3032 lithium cell (500mAh) – bigger than the common CR2032, but still kept inside a 6.5mm thin profile. With a 5‑second broadcast interval at 0dBm, you get 3+ years of continuous operation. And when the battery finally needs replacement, the pull‑open cover lets you swap it in seconds – no screwdrivers, no soldering.
Key features

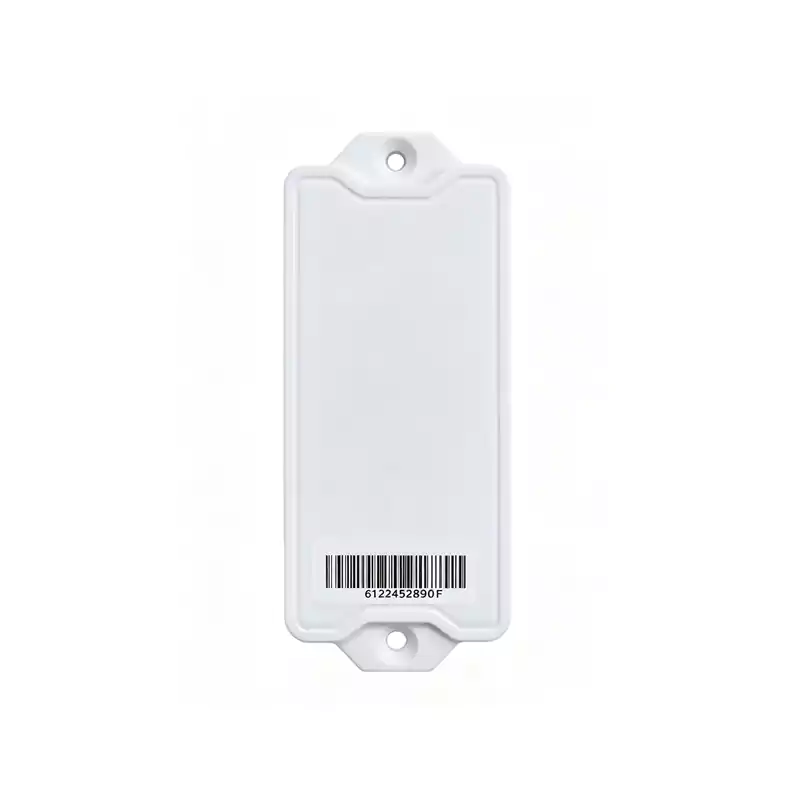

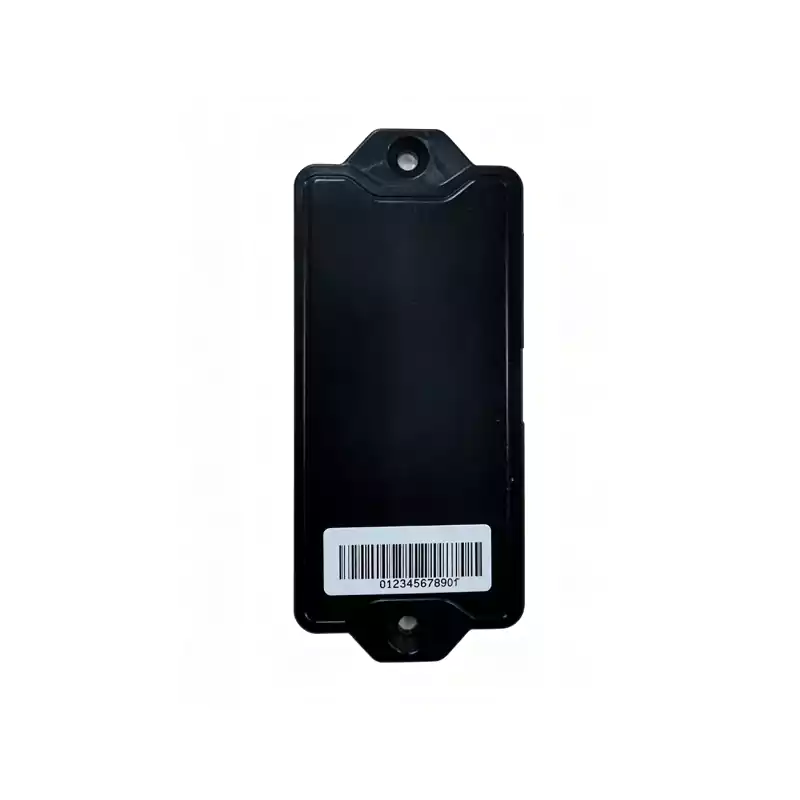

Ultra‑thin and light – 83×34×6.5mm, only 25g including battery. Fits on laptops, tools, medical carts, or luggage.
TI CC2640 Bluetooth chip – Industry‑proven BLE SoC with excellent power efficiency and stable RF performance.
Long battery life – 500mAh CR3032 provides 3+ years at 5s interval / 0dBm. Adjustable intervals from 100ms to 875ms.
Flexible configuration – Customisable UUID, Major, Minor, device name, TX power (-21dBm to +5dBm), and broadcast interval via mobile app or configuration tool.
Secure by design – Dynamic password authentication prevents unauthorised cloning or tampering – a feature missing in most consumer beacons.
Easy mounting – 3M adhesive tape for quick attachment, or screw holes for permanent installation.
Long range – Up to 80m indoors (line‑of‑sight) and 100m outdoors. With +2dBm default TX power, you can cover large zones with fewer gateways.
Technical specifications – OV05
| Specification | Value |
|---|---|
| Bluetooth chip | TI CC2640 (ARM Cortex‑M3) |
| Frequency | 2.4GHz Bluetooth Low Energy |
| TX power (configurable) | -21dBm to +5dBm (default +2dBm) |
| RX sensitivity | -96dBm, omnidirectional antenna |
| Broadcast interval | 100ms – 875ms adjustable |
| Standby current | 1µA |
| TX peak current | 9.1mA |
| RX current | 5.9mA |
| Battery type | CR3032 lithium coin cell (500mAh), replaceable |
| Battery life | 3+ years (5s interval, 0dBm, room temperature) |
| Voltage range | 1.8 – 3.8V (3.3V typ.) |
| Operating temperature | -20°C to +60°C |
| Dimensions (L×W×H) | 83 × 34 × 6.5 mm |
| Weight (incl. battery) | 25g |
| Mounting | 3M adhesive tape (included) or screw holes |
| Range (line‑of‑sight) | Indoor ≤80m, outdoor ≤100m |
| Security | Dynamic password authentication, configurable UUID/Major/Minor/name |
* Battery life varies with broadcast interval, TX power, and environmental temperature.
What the OV05 is NOT (honest limitations)
Not an active GPS tracker – This is a broadcast‑only iBeacon. It does not have GPS, cellular, or WiFi. It sends BLE advertisements that gateways or phones listen to.
Not waterproof – The OV05 has no IP rating. It is for indoor or sheltered outdoor use. Avoid immersion or heavy rain.
Range is line‑of‑sight – 80–100m is only achievable in open space. Metal shelves, concrete walls, and human bodies reduce effective range significantly.
Not a two‑way device – It only transmits beacons; it cannot receive commands or firmware updates over the air (OTA) without additional hardware. Use the configuration tool over BLE to change settings locally.
CR3032 batteries are less common than CR2032 – The larger capacity comes with a slightly less standard size. We can supply replacement batteries in bulk.
We'd rather you know these limits upfront. If you need waterproofing or two‑way communication, ask us about the OV07 or OV10 series.
Applications
Asset tracking – Laptops, tools, medical equipment, pallets, IT assets.
Personnel positioning – Staff badges in hospitals, warehouses, or production floors (paired with BLE gateways).
Indoor navigation – Fixed beacons on walls to guide visitors via mobile apps.
Proximity triggers – Automatic check‑in/out when a device approaches a gateway.
Logistics – Container or tote tracking in cross‑dock facilities.
Real deployment: 2000 medical equipment tags
A large hospital group in Germany deployed 2,000 OV05 tags on infusion pumps, ventilators, and wheelchairs. Each tag was configured with a 2‑second broadcast interval and 0dBm TX power. The hospital already had BLE gateways installed in every corridor. The OV05 tags reliably reported RSSI to gateways, and a custom positioning engine triangulated equipment location within 3‑5 metres. Nurses reduced search time for missing pumps from 20 minutes to under 2 minutes. After 30 months, only 12% of tags had exhausted their batteries – and the pull‑open cover allowed a single technician to replace each battery in less than 60 seconds.
Another client, a logistics company, used OV05 tags on returnable plastic pallets. The 100m outdoor range allowed gateways at loading docks to detect pallets from across the yard, eliminating manual scanning. The tags withstood -10°C winter conditions and occasional rain (although not submerged).
Ready to track your assets for years without battery anxiety?
Request a sample OV05 tag or a bulk quote. We'll help you configure UUID, intervals, and TX power for your specific environment.
