B2318 Series Multi‑Button Health Tracker
4G Cat.1 / BLE · GPS · SpO2 · Blood Pressure · Body Temp · SOS
When safety and health monitoring need to work offline
We've seen too many “senior watches” that stop reporting the moment cellular signal drops. Or kids' trackers that cannot store data when the school bus goes through a tunnel. The B2318 series was built with a 1MB offline buffer that stores location and health data when the network is unavailable – and automatically resyncs when signal returns. No data holes. No false sense of security.

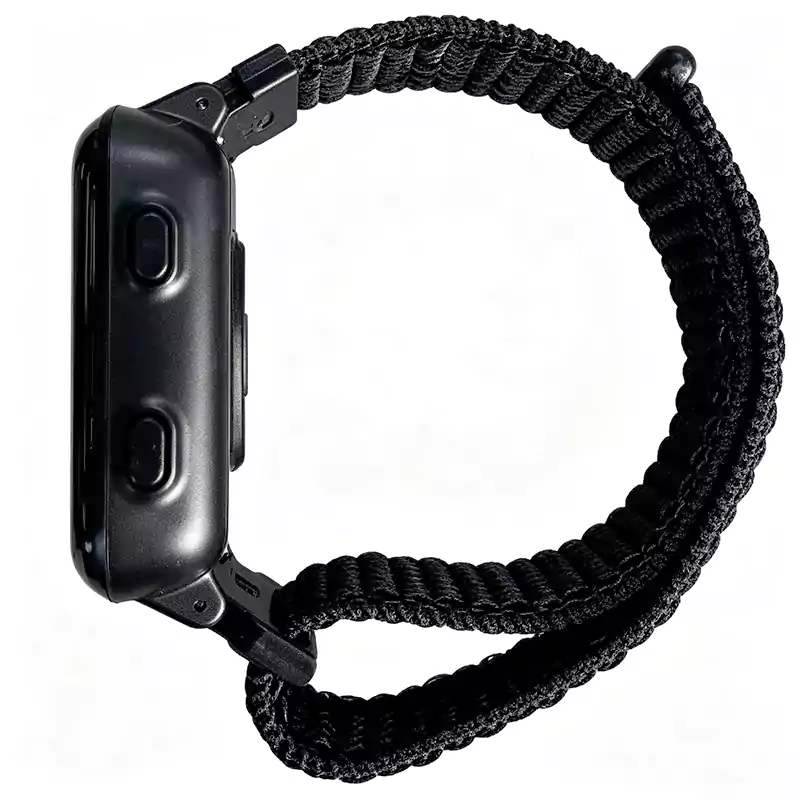

Available in two versions: B2318G (4G Cat.1 + BLE) for standalone wide‑area tracking, and B2318BT (BLE only) for cost‑effective indoor deployments with Bluetooth gateways or AOA positioning. Both share the same compact 28g body, IP67 waterproofing, and a full suite of health sensors – SpO2, blood pressure (HR‑derived), body temperature (±0.2°C), heart rate, HRV, steps, and sleep. The standard package includes a black velcro strap (18mm width, breathable).
Key capabilities
Multi‑mode positioning – GPS/BeiDou + WiFi + LBS + BLE. Indoor/outdoor seamless switching. With BLE beacons (6‑8m spacing), accuracy down to 1‑3m; with AOA gateway, sub‑metre precision.
Real‑time health alerts – SOS, low battery, power‑off, prolonged inactivity, geo‑fence crossing, and health threshold alerts (e.g., SpO2 <90%, fever >38°C).
Two‑way messaging – The 1.0″ TFT display can show custom names, QR codes, and messages pushed from the cloud platform or mobile app.
Off‑wrist detection – Accelerometer + heart rate sensor detect when the band is removed; enters ultra‑low power mode and sends a notification.
4 physical buttons – Easy to use even for elderly or children. One‑press SOS triggers immediate location report and call alerts.
Model comparison: B2318G vs B2318BT
| Feature | B2318G (4G Cat.1) | B2318BT (BLE only) |
|---|---|---|
| Cellular | 4G Cat.1 (B1/B3/B5/B8/B38/B39/B40/B41) + 2G fallback | None (BLE only) |
| SIM | Embedded 5×6mm IoT SIM with 3‑year data plan | No SIM |
| Positioning | GPS/BeiDou + WiFi + LBS + BLE | BLE only (requires gateway/phone with GPS) |
| Voice/messaging | Message push via cloud (no voice call) | Message push via BLE gateway |
| Standalone use | Yes – works anywhere with cellular | Requires BLE gateway or phone within range |
| Best for | Elderly with independent living, outdoor tracking, nationwide coverage | Kindergartens, nursing homes with BLE/AOA infrastructure |
Technical specifications – common to both models
| Dimensions & weight | 43 × 34 × 12.5 mm / 28g (with strap) |
|---|---|
| Display | 1.0″ TFT, 128×96 colour |
| Buttons | 4 physical keys (2 left, 2 right) |
| Battery | 200mAh Li‑ion, magnetic charging, 1.5h charge |
| Waterproof | IP67 |
| Strap | Breathable velcro, 18mm width (interchangeable with standard watch straps). Default included: black velcro strap. |
| Sensors | PPG SpO2 (red+IR), PPG heart rate (green+PD), high‑precision temperature (±0.2°C), 3‑axis accelerometer |
| Health metrics | SpO2, blood pressure (HR‑derived), body temperature, heart rate, HRV (RRI), steps, sleep (deep/light/awake) |
| Offline storage | 1MB Flash (stores data when network unavailable, auto‑resync) |
| Alerts | SOS, low battery, power‑off, prolonged inactivity, geo‑fence, health threshold |
| Extra | Message push, QR code display, white‑label cloud platform (modifiable logo/name) |
| Included accessories | Magnetic charging cable, instruction manual, warranty card, black velcro strap (already on device), optional multi‑unit charging case (sold separately) |
What the B2318 series is NOT (honest limitations)
Blood pressure is estimated from heart rate – It is not a medical‑grade cuff measurement. Use for long‑term trend spotting, not clinical diagnosis.
No two‑way voice calling – The B2318 supports message push and SOS alerts, but not real‑time phone calls. If you need voice, see our W200PG or W300 series watches.
GPS requires sky view – In deep indoor or underground areas, GPS may not lock. Fallback to WiFi/LBS/BLE provides approximate location.
BLE version (B2318BT) needs gateway – It cannot report data independently. You need a BLE gateway (BG601 or AOA gateway) or a paired smartphone within range.
4G bands are China‑optimised by default – The standard SIM works in China. For international use, please request a global SIM or bring your own SIM (nano‑size? Actually embedded SIM, so replacement is not user‑friendly. Contact us for export models.)
Not for swimming – IP67 protects against immersion up to 1m for 30min, but not high‑speed water jets or continuous swimming.
We prefer clear honesty. If you need clinical blood pressure accuracy or voice calling, this product is not for you – but we'll point you to the right one.
Real deployment: kindergarten with 120 children
A private kindergarten in Shanghai deployed B2318BT bands for all children (BLE version) combined with 8 BLE AoA gateways across classrooms and playgrounds. Teachers used the white‑label mobile app to monitor real‑time heart rate, body temperature (fever screening), and location (indoors with 1‑3m accuracy). The SOS button was pressed three times in six months – each time a child fell off playground equipment, and teachers received instant alerts. The offline buffer ensured no data loss during brief WiFi outages. The kindergarten reduced manual temperature checks by 90% and eliminated lost-child search time.
Another client, a home care agency in California, deployed B2318G bands to 50 elderly clients living independently. The 4G version provided nationwide tracking, fall detection (prolonged inactivity), and daily health reports. Family members received alerts when seniors wandered outside geo‑fences or when vital signs crossed thresholds. The 3‑year included SIM simplified procurement – no separate SIM contracts.
Ready to deploy a complete health + safety solution?
Request a sample kit (choose B2318G or B2318BT) or a white‑label platform demo. We'll help you set up alerts, geofences, and API integration.
