UB01 UWB Beacon
No base stations · 100m range · 10cm static accuracy · 3+ year battery
Key features
No base stations, easy deployment
Battery powered — no extra cabling or network infrastructure. Mount with 3M adhesive tape or screws. Perfect for retrofits and temporary installations.
Ultra‑long battery life
38 Ah battery delivers 3+ years of operation (based on 8 hours of continuous tag positioning per day). Standby current below 5 µA.
Low‑cost high precision
Static positioning accuracy down to 10 cm. Uses TOF (Time of Flight) algorithm with IEEE 802.15.4‑2011 UWB radio.
Applications
Smart factories – Asset tracking, AGV navigation, tool location
Smart parks & campuses – Personnel and vehicle indoor positioning
Smart scenic areas – Visitor flow monitoring, tour guide triggers
Smart power plants – Equipment and staff location in hazardous zones

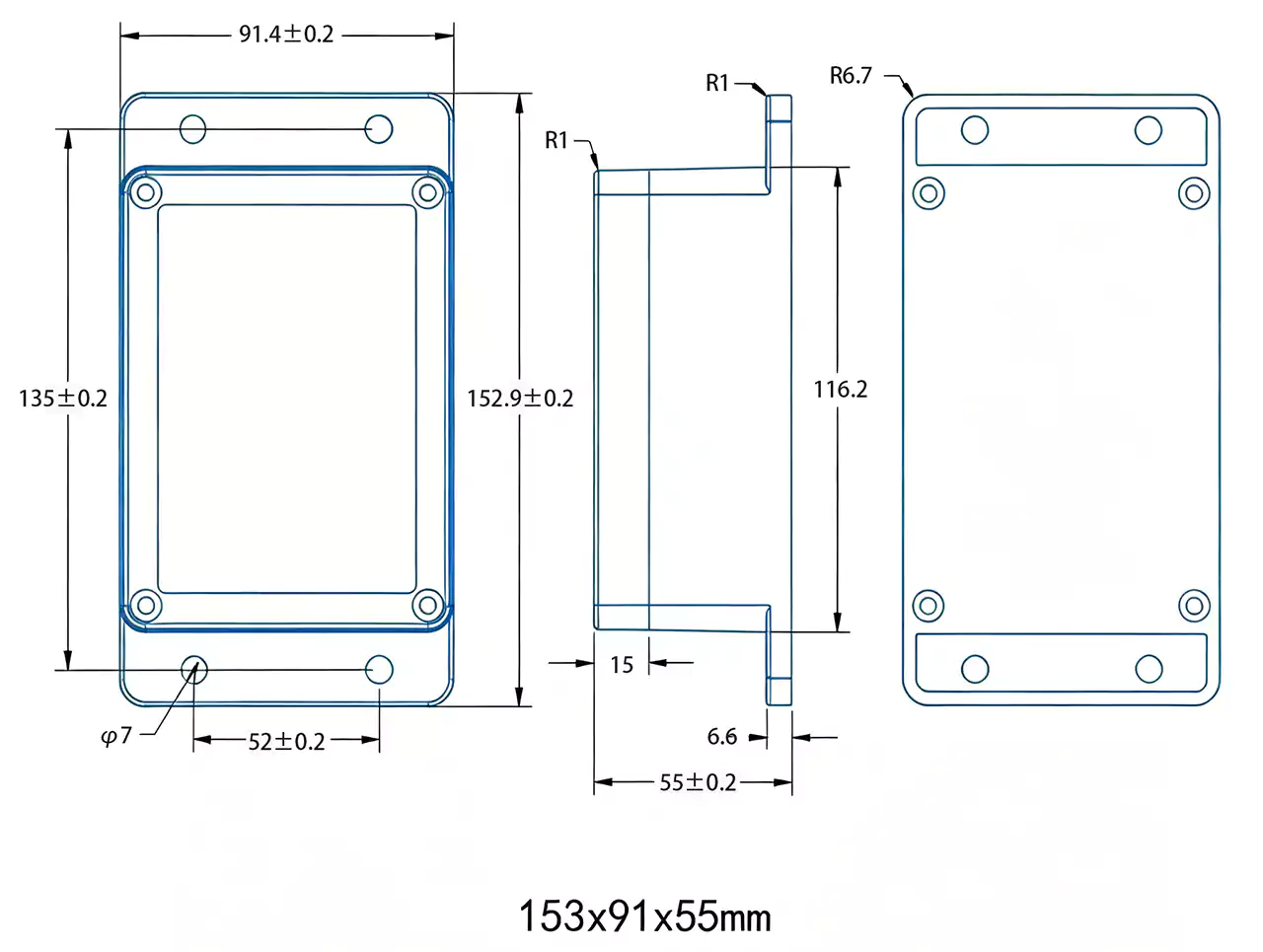

Mechanical drawing
Technical specifications
| Physical parameters | |
|---|---|
| Dimensions | 153 × 91 × 55 mm |
| Color | Grey |
| Operating temperature | -30°C ~ +70°C |
| Working humidity | 5 ~ 95% RH |
| Protection rating | IP66 |
| UWB parameters | |
| Ranging distance | ≤ 100 m |
| Static accuracy | ≤ 10 cm |
| Ranging algorithm | TOF (Time of Flight) |
| Frequency band | 6.2 ~ 6.739 GHz (IEEE 802.15.4-2011 UWB) |
| Data rate | 6.8 Mbps |
| TX power | -20 ~ +4 dBm |
| Electrical characteristics | |
| Standby current | < 5 μA |
| TX current | < 150 mA (at 28.5 dBm gain) |
| Average current | 1.9 mA (at 10 Hz broadcast) |
| RX current | 120 ~ 160 mA |
| Battery capacity | 38 Ah |
| Operating voltage | 3.6 V |
| Battery life | 3+ years (based on 8 hours of continuous positioning per day) |
* All values typical at room temperature unless noted.
Simple deployment
The UB01 requires no external base stations. Each beacon communicates directly with UWB readers or mobile devices. Use 3M adhesive tape for quick mounting on walls, ceilings, or equipment. For permanent installations, use screws through the mounting holes. The IP66 enclosure withstands dust and water jets, making it suitable for industrial indoor environments.
