BG602 Series Bluetooth Gateway
Indoor / Outdoor · BLE 5.0 · PoE / DC · Optional 4G
Why you need a professional BLE gateway
We've seen too many projects fail because a consumer router with Bluetooth couldn't handle 20 beacons, or because it dropped connections in a warehouse with metal shelves. The BG602 is designed for industrial IoT: a dedicated MIPS processor, PA+LNA for extended range, and support for both PoE and DC power. It runs a reliable Linux stack with UDP/TCP/MQTT uplink, and it can even use 4G where Ethernet is unavailable.
Model comparison
| Model | Enclosure | 4G | Best For |
|---|---|---|---|
| BG602‑P | ABS+PC (indoor) | ✗ | General indoor IoT, cost‑sensitive |
| BG602‑PC | ABS+PC (indoor) | ✓ | Indoor deployments without Ethernet backhaul |
| BG602‑M | Metal, IP66 (outdoor) | ✗ | Outdoor / harsh environments, wired backhaul |
| BG602‑MC | Metal, IP66 (outdoor) | ✓ | Outdoor / harsh environments, no Ethernet backhaul |

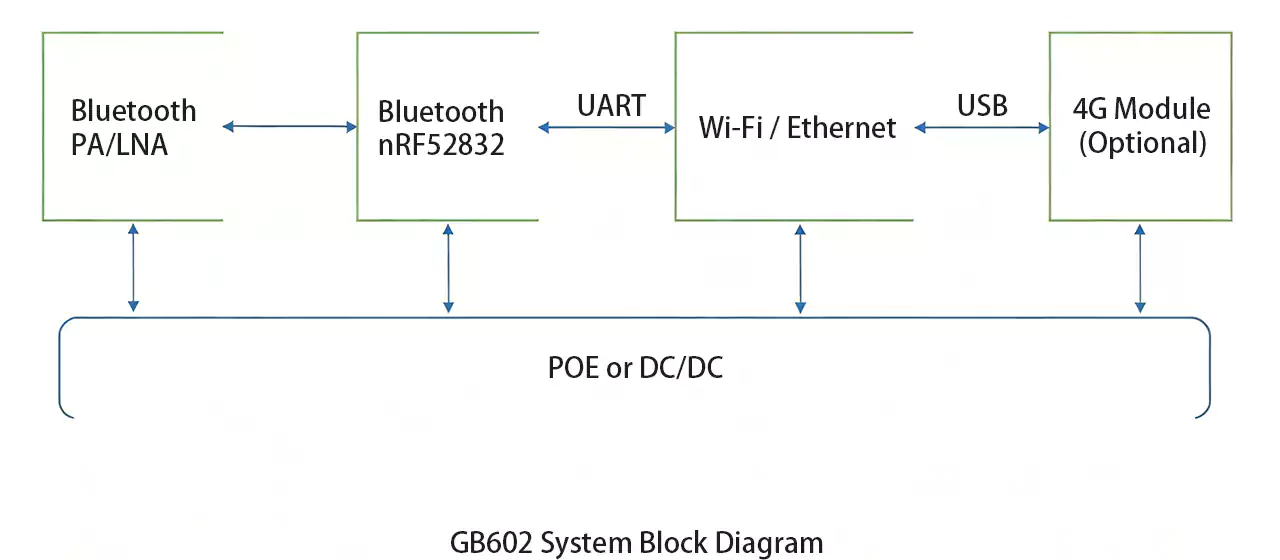

System architecture
Key features
PoE + DC power
IEEE 802.3at Class 1 PoE (48V) or 12V DC input. Works with standard PoE switches or local power supplies.
Long-range BLE
Built-in PA+LNA provides 100m scanning and 50m connection range, even in industrial environments.
Optional 4G backhaul
Ethernet unavailable? The PC/MC versions include a 4G module with global band support for remote deployment.

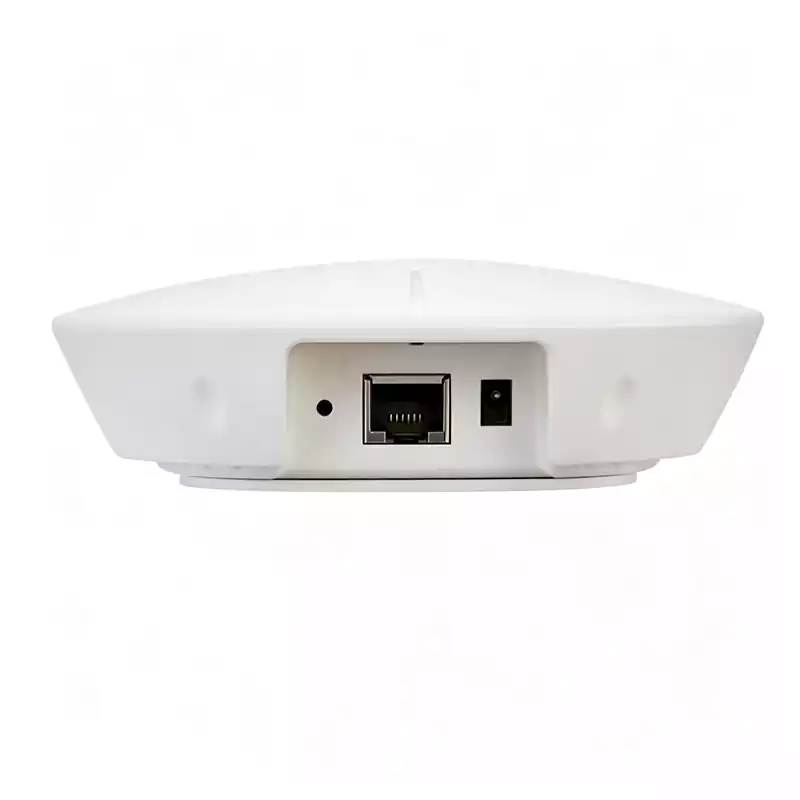

Industrial grade

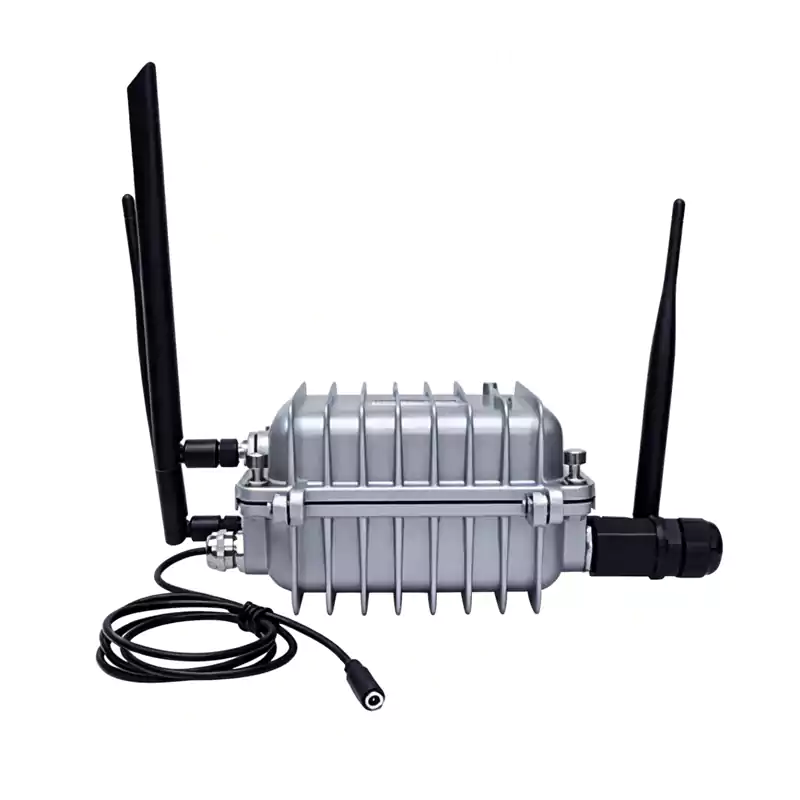

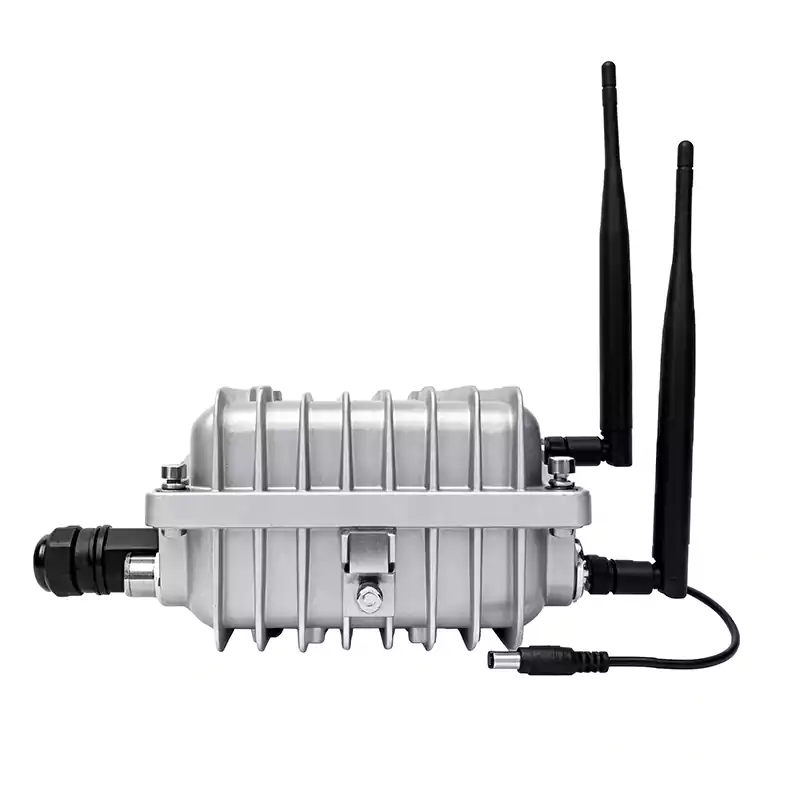

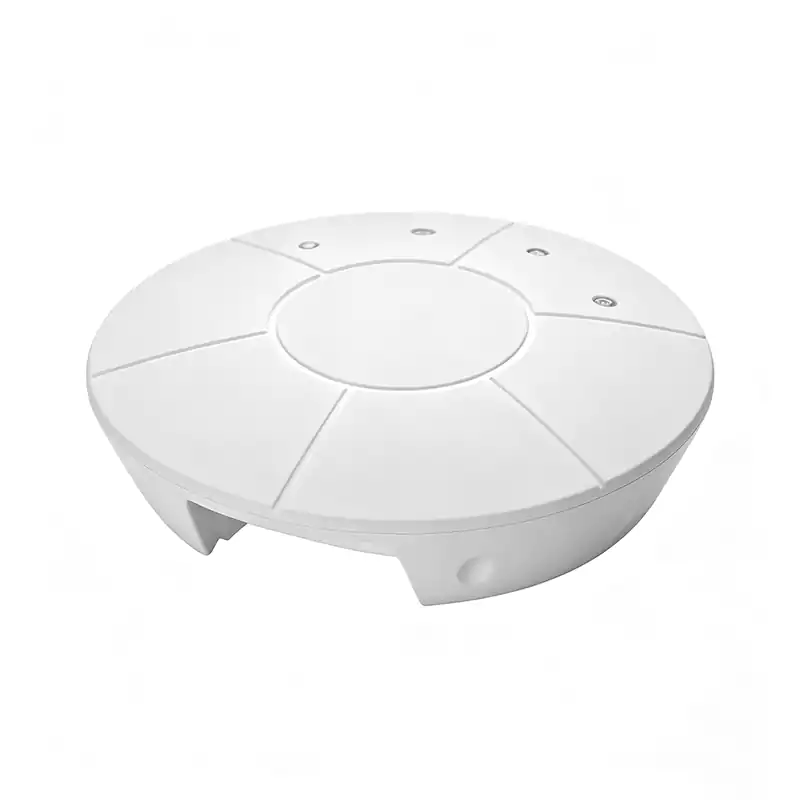

Outdoor models feature metal IP66 enclosure and -20°C to +70°C operation. Indoor models use durable ABS+PC.
Technical specifications
| Processor | MIPS24KEc @580MHz |
|---|---|
| Memory | DDR2 64MB + 16MB Flash |
| Bluetooth | BLE 4.2/5.0, built‑in PA+LNA, scan range ≤100m, connect range ≤50m, max connections 20 |
| WiFi | 802.11b/g/n (up to 150Mbps) |
| Ethernet | 10/100M, auto MDI/MDIX, PoE (802.3at Class 1, 48V) |
| 4G (optional) | LTE‑TDD/FDD, UMTS, EVDO, EDGE, GPRS, GSM, CDMA |
| Power input | PoE (48V) or DC 6‑24V; indoor: 12V/1A (no 4G) / 12V/2A (with 4G); outdoor: 12V/2A |
| Power consumption | ~280mA @12V with 4G, ~180mA @12V without 4G |
| Operating temp | -20°C to +70°C |
| Enclosure | Indoor: ABS+PC; Outdoor: metal (IP66) |
| Dimensions | Indoor: ∅124mm × 40mm; Outdoor: 153×137×97 mm |
What the BG602 is NOT
Not a BLE audio gateway – This is for data and positioning, not voice streaming.
PoE requires 48V standard switch – Do not use 24V passive PoE injectors.
Outdoor version is not fully IP68 – It is weather‑resistant but not submersible.
4G version requires SIM card with data plan – Not included (we can provide IoT SIM on request).
Not a GPS tracker – No built‑in GNSS. For positioning, use triangulation from multiple gateways.
Scanning 100m is in open air – Obstructions (walls, metal) reduce effective range.
Packing & shipping
Indoor model package includes: gateway, screw anchors, self‑tapping screws, mounting base, power adapter. Outdoor model adds mounting brackets, hex key, and antennas.
Real deployment: hospital asset tracking
A regional hospital deployed 85 BG602‑PC indoor gateways across five floors to track infusion pumps, wheelchairs, and staff panic buttons. The gateways were ceiling‑mounted and powered via PoE. The system reduced equipment search time by 65% and improved emergency response time from minutes to under 20 seconds. For outdoor parking areas, they used 12 BG602‑MC gateways with 4G backhaul – no Ethernet cabling required.
Ready to connect your Bluetooth devices to the cloud?
Request a sample gateway (indoor or outdoor) or a technical datasheet. We'll help you select the right model and provide API documentation.
