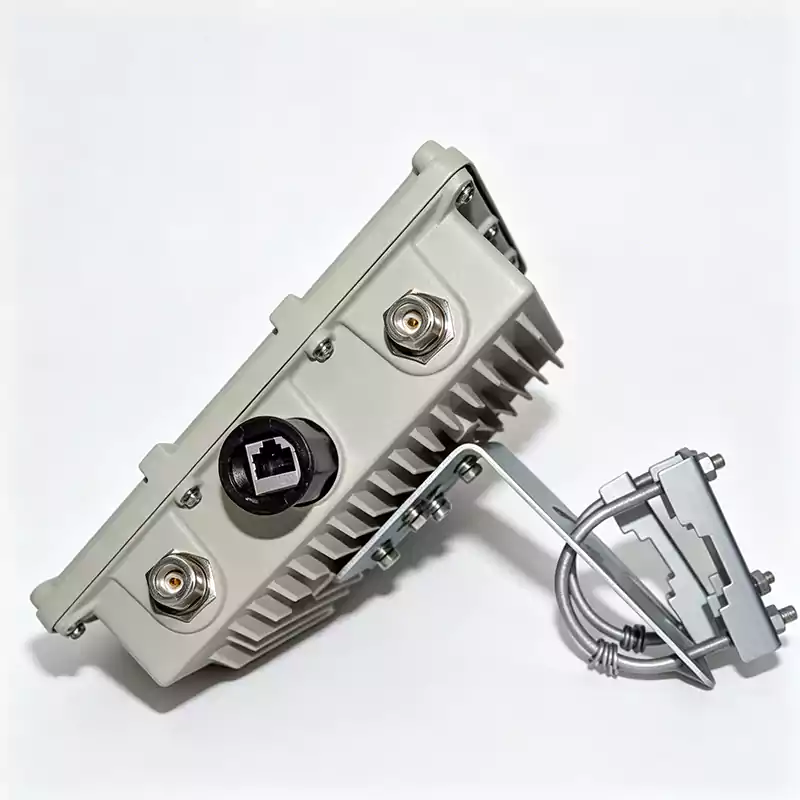

LG600 / LG601 Outdoor LoRaWAN Gateway
SX1302 · 4G Cat4 · IP67 · -40°C to +85°C
The hidden cost of “cheap” outdoor gateways
We've replaced enough dead gateways on cattle ranches and solar farms to know the pattern: plastic enclosures that crack after six months of UV exposure, LTE modems that overheat inside sealed boxes, and LoRa concentrators that lose sensitivity when temperatures swing from -30°C to +50°C. The real price isn't the hardware – it's the truck roll to a remote site every time a gateway goes offline.
The LG600 series was engineered for the kind of outdoor use that kills consumer‑grade electronics. IP67 aluminium‑polycarbonate housing, industrial‑grade SX1302 chipset, and a thermal design that keeps the Cortex‑A7 running from -40°C to +85°C without a fan. You mount it on a pole, connect power and antenna, and forget it for years.
Four hard advantages over commodity outdoor gateways
1️⃣ SX1302 – not the old 1301
Most gateways in this price range still ship with the first‑generation SX1301. The LG600 uses Semtech's SX1302, which delivers 62.5% lower power consumption and up to 8 channels with superior interference rejection. We've tested it next to a grain silo with two competing gateways – the LG600 consistently decoded more packets at -137dBm SF12.
2️⃣ Dual backhaul (LG600 only) or single 4G (LG601)
LG600 gives you both 4G Cat4 and 10/100 Ethernet with automatic failover. If the fibre gets cut by a backhoe, the gateway switches to cellular within 20 seconds. LG601 is a pure 4G version for sites where running Ethernet is impossible – same ruggedness, no RJ45 port, lower cost. Both use global 4G bands (B1/B3/B5/B7/B8/B20/B28/B40) with 2G fallback.
3️⃣ Real‑world thermal performance
We heat‑soaked the LG600 in a chamber at +85°C while transmitting at 27dBm. The CPU throttled? No. The modem rebooted? No. The enclosure is designed to conduct heat away from the radio modules. At -40°C, the onboard oscillator stabilises within 90 seconds – no warm‑up period required.
4️⃣ M6 mounting, N‑type antenna connector
Outdoor deployment means you need proper mounting and low‑loss RF connections. The LG600 series includes M6 screw holes on the back for pole or wall brackets (bracket sold separately). The LoRa antenna port is N‑type (female) – not SMA – so you can use standard outdoor‑rated antennas with 0.5m or longer coax without excessive loss.
Mounting & installation guide

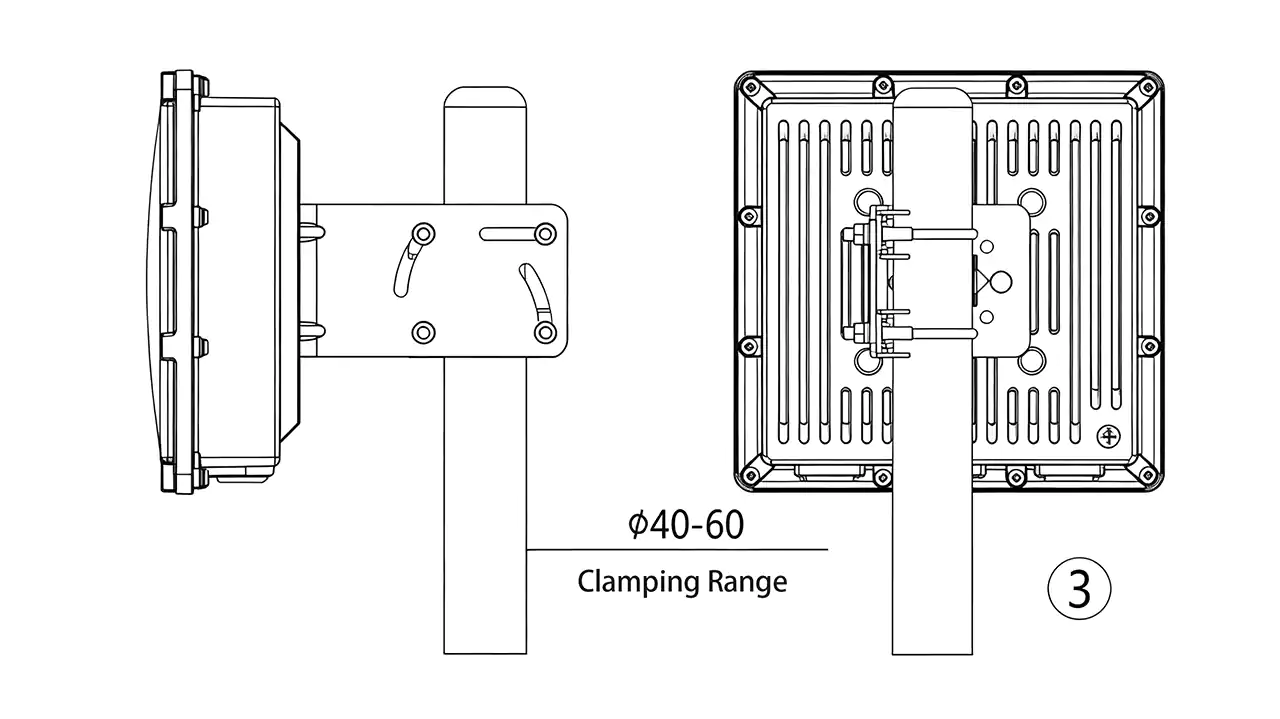

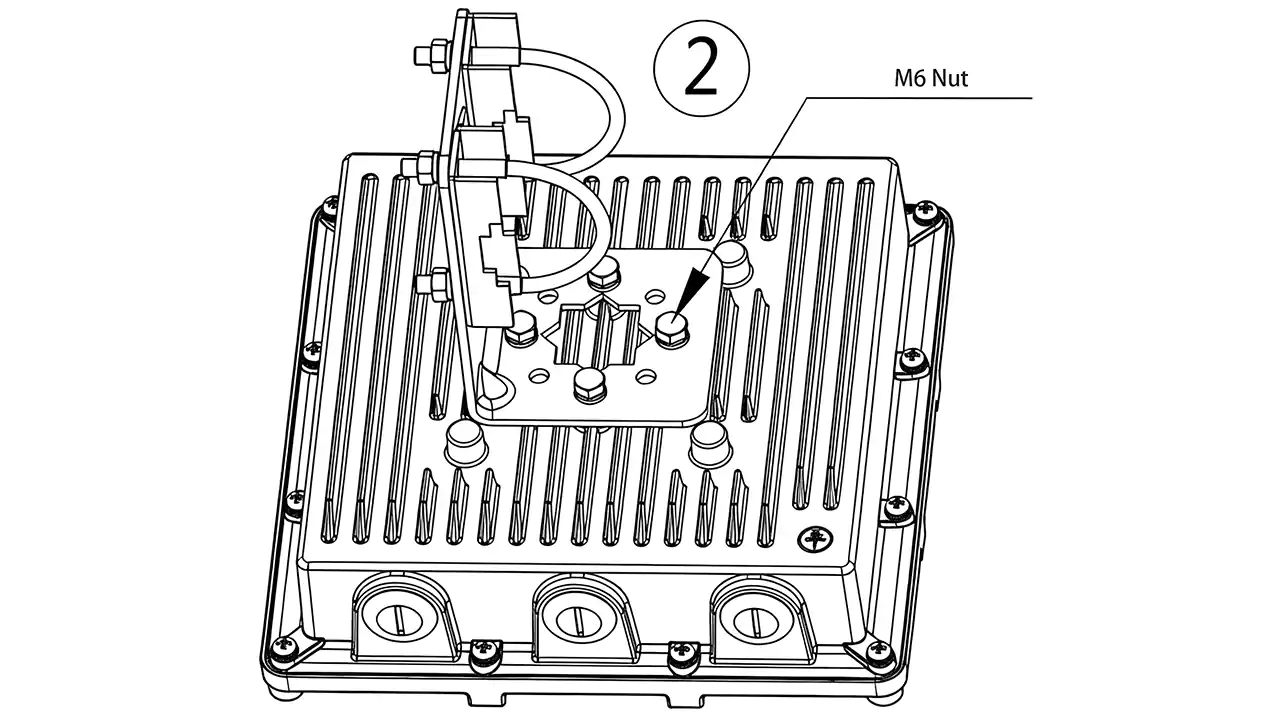

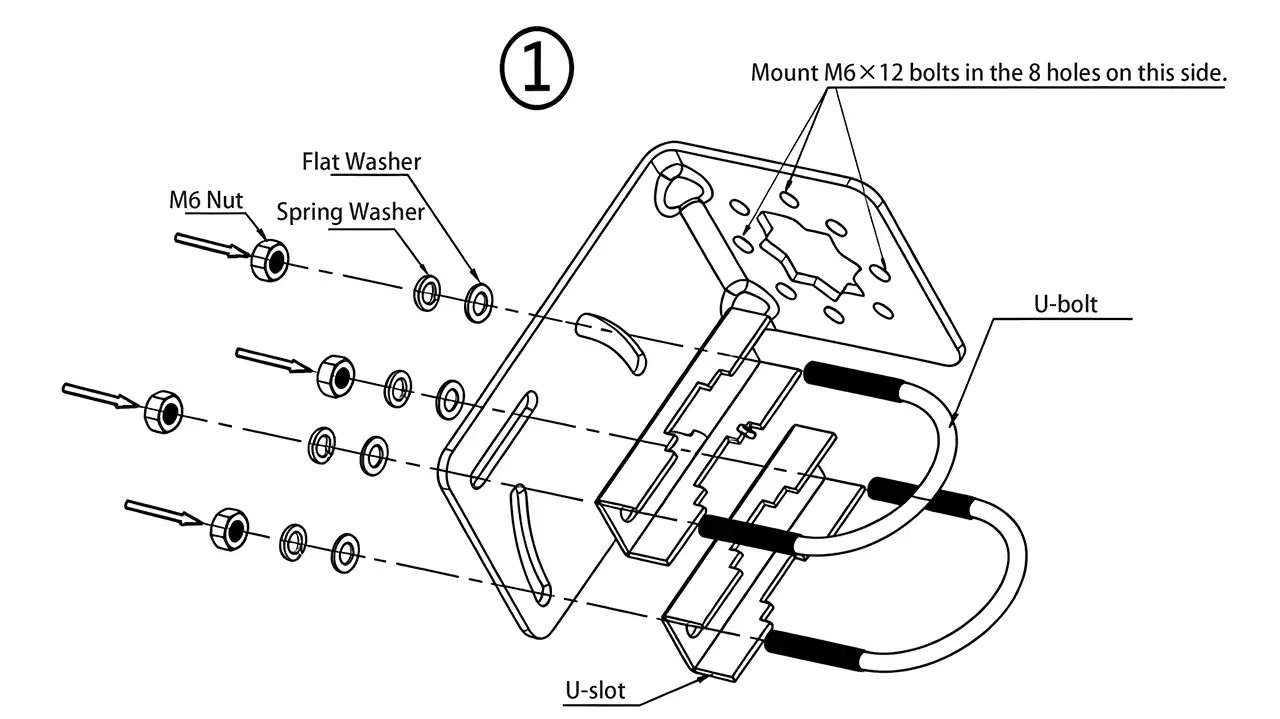

Below are typical mounting methods for the LG600 series. All diagrams show the recommended orientation and grounding practices.

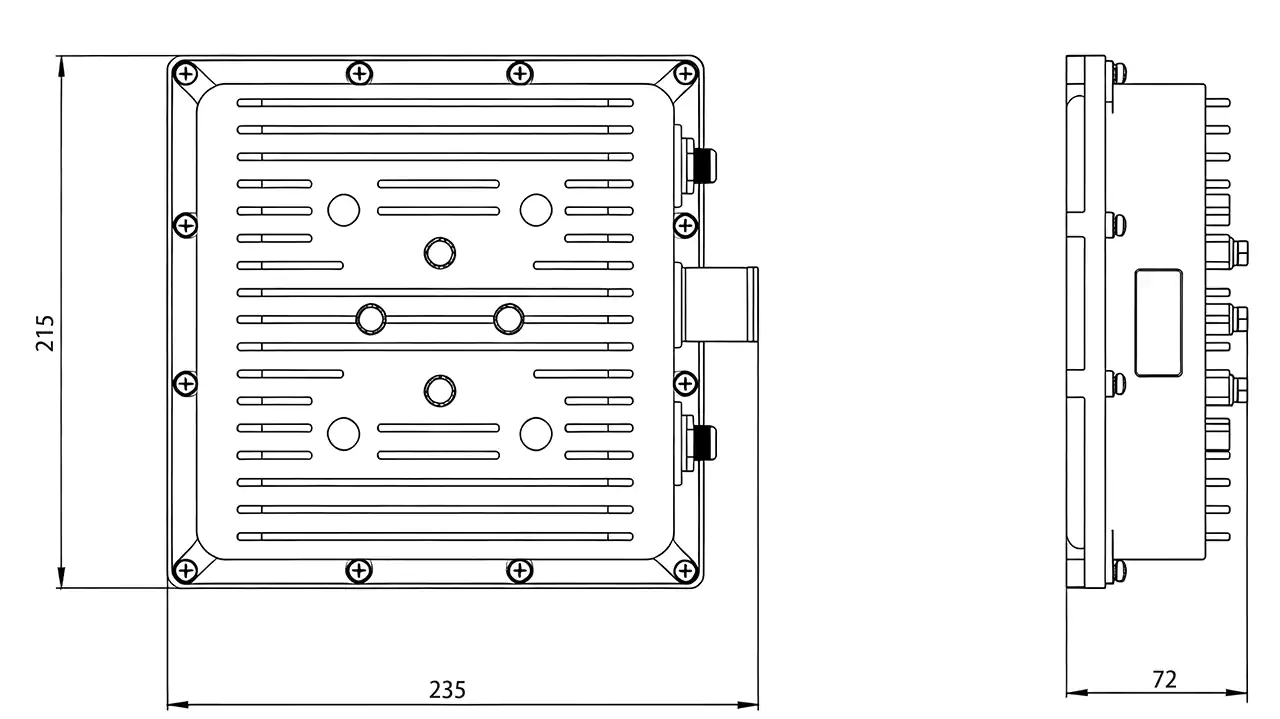

Dimensional drawing (mm)
LG600 vs LG601: which one fits your site?
Both models share the same SX1302 concentrator, same IP67 enclosure, same industrial temperature range, and the same 4G Cat4 modem. The only difference is the backhaul configuration and the price.
| Feature | LG600 | LG601 | Best For |
|---|---|---|---|
| Ethernet (10/100) | ✅ (RJ45, no PoE) | ❌ | Wired + cellular fallback |
| 4G Cat4 | ✅ (backup) | ✅ (primary) | Dual backhaul / Uplink |
| Failover | Automatic (Ethernet → 4G) | N/A | Redundancy |
| Power input | 12V DC (7–36V) / PoE splitter opt. | 12V DC terminal block | Remote, no Ethernet |
Note: Both models require an external 4G antenna (N‑type) and a LoRa antenna (N‑type). Antennas are not included – we recommend 3dBi fibreglass omnidirectional for most deployments.
Technical specifications – LG600 / LG601
| CPU / Core | Cortex-A7, 528MHz |
|---|---|
| Memory / Storage | 512MB DDR3 RAM + 8GB eMMC |
| LoRa Chipset | SX1302 + SX1250 frontend, 8 channels, half‑duplex |
| Frequency Bands | CN470, EU868, US915, AS923 (factory configured) |
| Max TX Power | +27dBm (adjustable 0–27dBm in 1dB steps) |
| Receiver Sensitivity | -139dBm @ SF12, 125kHz (typical) |
| Backhaul (LG600) | 4G Cat4 (B1/3/5/7/8/20/28/40) + 10/100 Ethernet with auto failover |
| Backhaul (LG601) | 4G Cat4 only (same bands) |
| Antenna Connectors | 2x N‑type female (LoRa + 4G) |
| Power Input | 12V DC (7–36V range) via 2‑pin terminal block. Max 8W consumption |
| Enclosure | IP67 aluminium + polycarbonate, UV‑resistant, M6 mounting holes |
| Operating Temperature | -40°C to +85°C (tested 1000h @ 85°C, 200h @ -40°C) |
| Dimensions & Weight | 160 × 110 × 45 mm, approx. 850g (without bracket) |
| Certifications | CE, FCC, RoHS (pending for some bands) |
What the LG600 series is NOT (honest limitations)
Not a PoE gateway – There is no 802.3af/at PoE input on the RJ45 port. You need 12V DC. We sell a passive PoE splitter if you want to use an existing PoE switch, but it's not built‑in.
No WiFi or Bluetooth – This is a pure LoRaWAN gateway. It does not have WiFi for local configuration. All management is done via SSH over Ethernet/4G or a serial console (hidden under the bottom cover).
Not a 64‑channel carrier‑grade gateway – SX1302 gives you 8 channels. For dense urban deployments with >2000 end nodes, you'll need a professional multi‑concentrator gateway. We don't pretend otherwise.
Antennas not included – You must supply your own LoRa and 4G antennas with N‑type male connectors. We can recommend specific models based on your region.
No built‑in GPS for time sync – The gateway uses NTP over 4G/Ethernet. If you need precise timestamping without network dependency, consider an external GPS module (not supported).
Real deployment: 1200-hectare smart vineyard
A wine producer in central Chile deployed 18 LG601 gateways across 1200 hectares of hilly terrain. Each gateway is pole‑mounted at 6m height, powered by a small solar panel + 12V battery. The site has no Ethernet, only 4G coverage (variable from 2 to 3 bars). The LG601's 4G Cat4 modem holds a stable connection even at -95dBm RSRP. Each gateway handles 180 soil moisture and temperature sensors (LoRaWAN, SF10, 10‑minute intervals). After 14 months, zero gateway hardware failures. The only site visit was to replace a lightning‑damaged 4G antenna.
Another client, an oil & gas pipeline operator in Canada, uses LG600 gateways along a 200km corridor. Ethernet is available at pumping stations, but cellular provides fallback when fibre gets cut by construction crews. The -40°C rating proved essential during a polar vortex – the gateways continued to report pressure and flow data while consumer gear froze solid.
Ready to stop losing sleep over outdoor gateway reliability?
Request a sample for field testing or a technical consultation. We'll help you choose between LG600 (Ethernet+4G) and LG601 (4G only) based on your site's backhaul.
