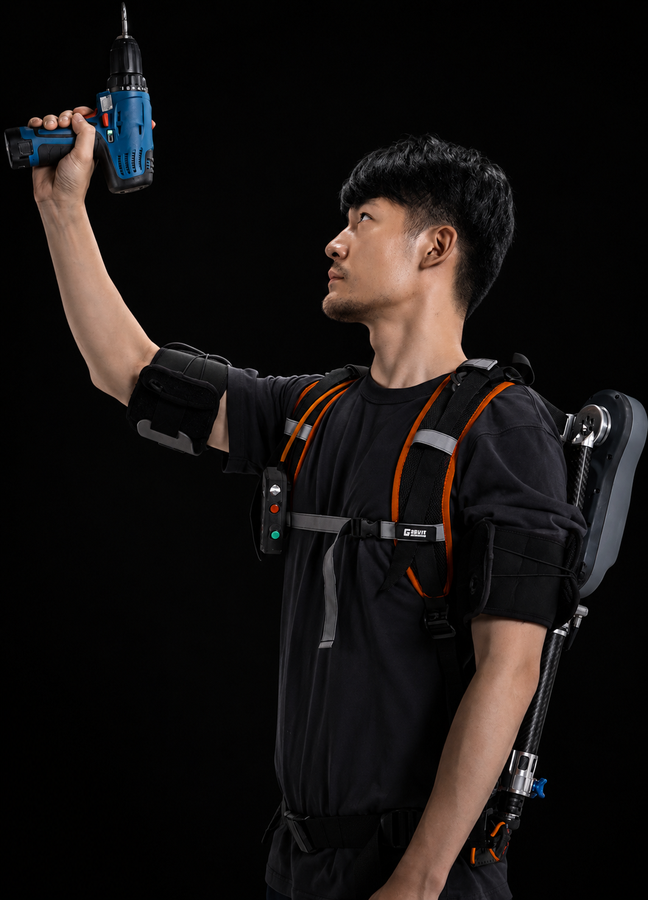

Liberate Your Arms, Effortless Lifting
FIT-U PRO
Upper Limb Exoskeleton Robot
Engineered for Peak Performance
Designed to maximize productivity and minimize user fatigue in repetitive overhead tasks.
Advanced Materials & Lightweight Design
Constructed with aerospace-grade aluminum alloy, carbon fiber composites, and high-strength engineering plastics, the FIT-U Pro achieves an industry-leading weight of just 3.9kg.
This material innovation delivers a 50% load reduction, allowing workers to handle tools and components up to 20kg with significantly reduced muscular strain.
Ergonomic & Portable Structure
Features a symmetrical, split-frame design that folds compactly, reducing storage and transport volume by 60% compared to rigid exoskeletons.
Torso length and hip width are fully adjustable, ensuring a secure and comfortable fit for over 90% of the adult population across diverse body types.

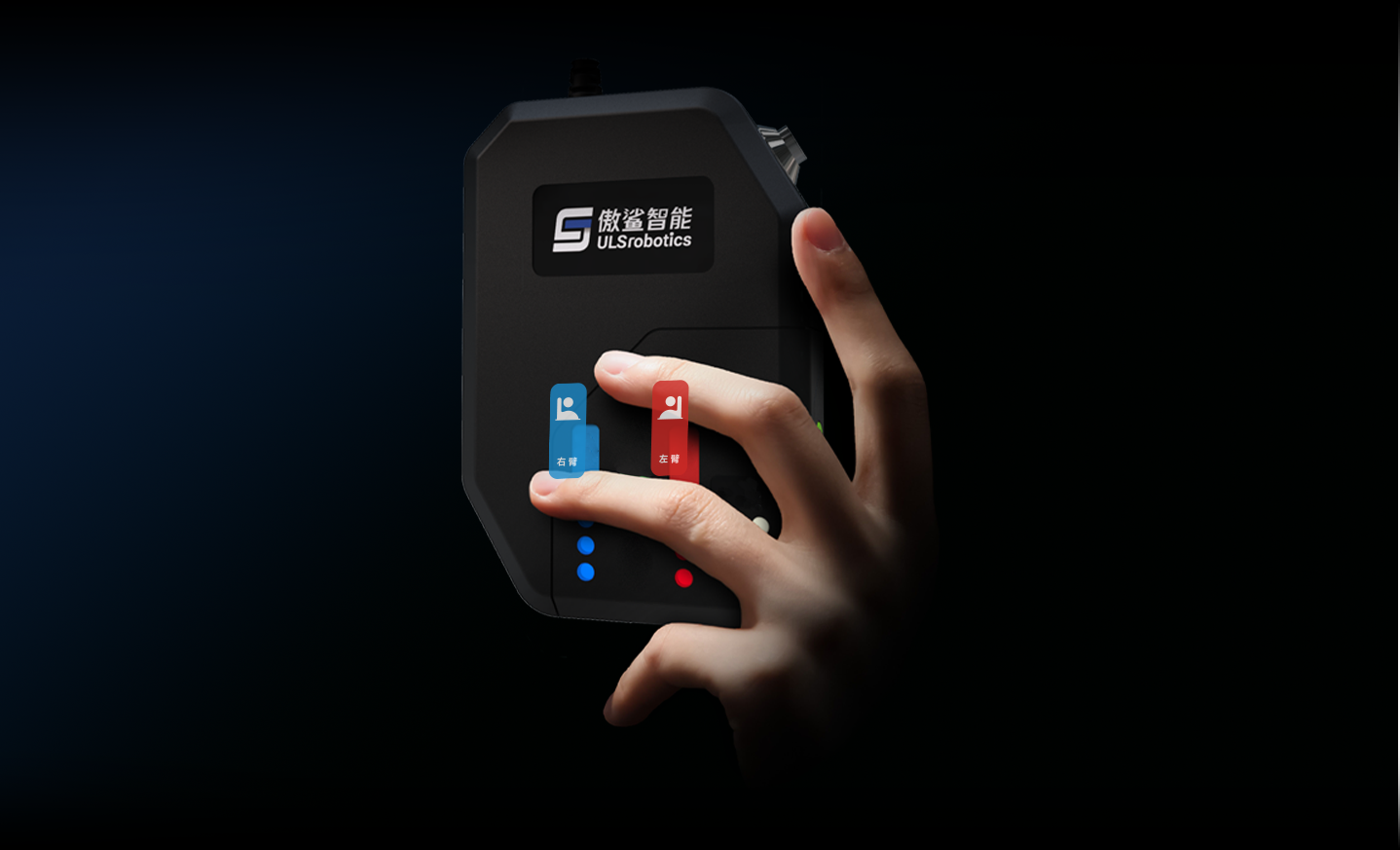

Smart Drive System & Intuitive Interaction
Equipped with independently controlled bilateral motors that provide linear, natural-feeling assistance, precisely matching the user's movement intent.
An integrated DIU (Direct Interaction Unit) offers one-touch operation, while open APIs allow for seamless integration with factory MES systems and custom workflow programming.
Technical Specifications
Comprehensive parameters defining the performance and design of the FIT-U Pro.
| Parameter | Specification |
|---|---|
| Model | FIT-U PRO Upper Limb Exoskeleton Robot |
| Dimensions (L×W×H) | (600mm-680mm) × 572mm × 220mm (Adjustable Length) |
| Weight | 3.9 kg |
| Power Source | Electric Servo Drive |
| Peak Assist Force | 20 kg (Dual Arms Combined) |
| Operating Time | 3 ~ 8 hours (Varies with load and mode) |
| Battery | Rechargeable Lithium-ion, 36V, Quick-swappable |
| Degrees of Freedom (DOF) | 8 |
| Operating Temperature | -20℃ ~ 50℃ |
| Primary Materials | Engineering Plastics, Aerospace Aluminum Alloy, Carbon Fiber |
